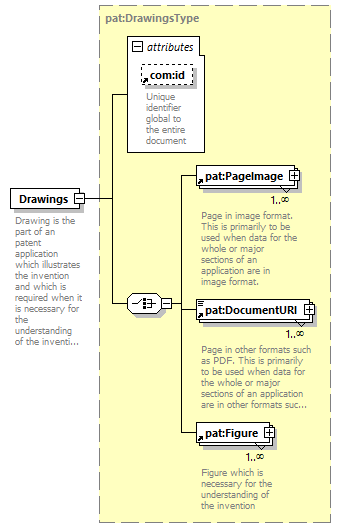

element Drawings
diagram
version V7_1
namespace http://www.wipo.int/standards/XMLSchema/ST96/Patent
type pat:DrawingsType
children pat:PageImage pat:DocumentURI pat:Figure
used by
complexType pat:ApplicationBodyType pat:PatentPublicationType
attributes
Name Type Use Default Fixed annotation
com:id xsd:ID
source <xsd:element name="Drawings" type="pat:DrawingsType">
<xsd:annotation>
<xsd:documentation>
Drawing is the part of an patent application which illustrates the invention and which is required when it is necessary for the understanding of the invention.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
