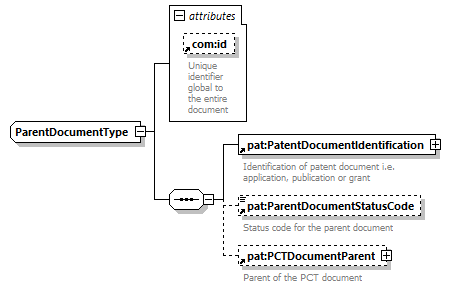

| diagram |  |
| version | V3_0 |
| namespace | http://www.wipo.int/standards/XMLSchema/ST96/Patent |
| children | pat:PatentDocumentIdentification pat:ParentDocumentStatusCode pat:PCTDocumentParent |
| used by | |
| attributes | | Name | | Type | | Use | | Default | | Fixed | | annotation | | com:id | | xsd:ID | | | | | | | | |
|
| source | <xsd:complexType name="ParentDocumentType">
<xsd:sequence>
<xsd:element ref="pat:PatentDocumentIdentification"></xsd:element>
<xsd:element ref="pat:ParentDocumentStatusCode" minOccurs="0"></xsd:element>
<xsd:element ref="pat:PCTDocumentParent" minOccurs="0"></xsd:element>
</xsd:sequence>
<xsd:attribute ref="com:id"></xsd:attribute>
</xsd:complexType> |
