complexType PageImageType

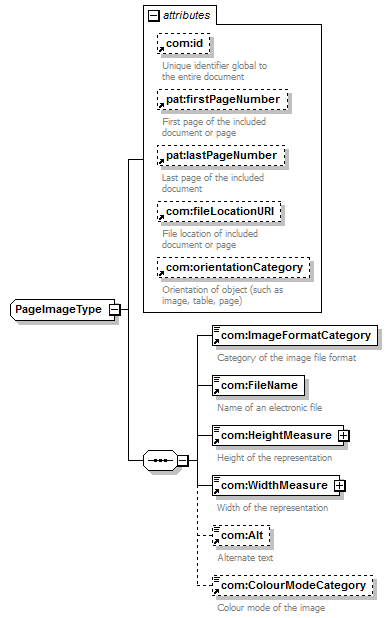

diagram
version	V2_1
namespace	https://www.wipo.int/standards/XMLSchema/ST96/Patent
children	com:ImageFormatCategory com:FileName com:HeightMeasure com:WidthMeasure com:Alt com:ColourModeCategory
used by	element pat:PageImage
attributes	Name Type Use Default Fixed annotation com:id xsd:ID pat:firstPageNumber xsd:string pat:lastPageNumber xsd:string com:fileLocationURI xsd:anyURI com:orientationCategory com:OrientationCategoryType Portrait
source	<xsd:complexType name="PageImageType"> <xsd:sequence> <xsd:element ref="com:ImageFormatCategory"> </xsd:element> <xsd:element ref="com:FileName"> </xsd:element> <xsd:element ref="com:HeightMeasure"> </xsd:element> <xsd:element ref="com:WidthMeasure"> </xsd:element> <xsd:element ref="com:Alt" minOccurs="0"> </xsd:element> <xsd:element ref="com:ColourModeCategory" minOccurs="0"> </xsd:element> </xsd:sequence> <xsd:attribute ref="com:id"/> <xsd:attribute ref="pat:firstPageNumber"/> <xsd:attribute ref="pat:lastPageNumber"/> <xsd:attribute ref="com:fileLocationURI"/> <xsd:attribute ref="com:orientationCategory" default="Portrait"/> </xsd:complexType>
